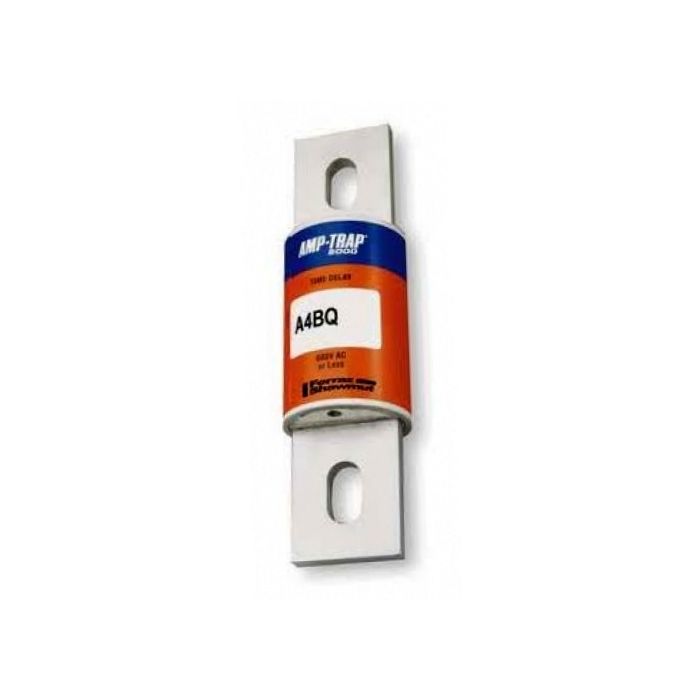

A4BQ601
$790.99
Mersen A4BQ Series
Amp-Trap 2000 A4BQ fuses are 20 percent more current limiting than any other Class L fuse on the market. When correctly coordinated, they bring a superior level of protection to service entrance equipment. Downstream circuit components have maximum protection against short circuit let-thru current. A4BQ's built-in 4-second time-delay characteristic (at 500percent of rated current) accommodates harmless inrush currents with no nuisance opening.
Other Names: A4BQ601, A4BQ 601 Amp, A4BQ-601, A4BQ 601A, A4BQ601A, A4BQ-601A, A4BQ 601
| Manufacturer | Mersen |
|---|---|
| Ampere | 601 A |
| Voltage Rating | 600VAC, 500VDC |
| Interrupt Rating | 200kA I.R. AC, 100kA I.R. DC |
| Speed | Time Delay |
| Class | Class L |
| Approvals | UL listed to standard, DC listed to UL standard, CSA certified to standard |
| Datasheet | Product Specifications |
| Item Weight | 4 lb |
| Other names | A4BQ601, A4BQ 601 Amp, A4BQ-601, A4BQ 601A, A4BQ601A, A4BQ-601A, A4BQ 601 |
Witonics is not an authorized distributor of Bussmann, Eaton, Littelfuse, Mersen, Ferraz Shawmut, Daito or SIBA products.
